• Country
• Switzerland

• Manufacturer / Brand
• Studer-Revox; Schweiz

• Year
• 1973 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 135820

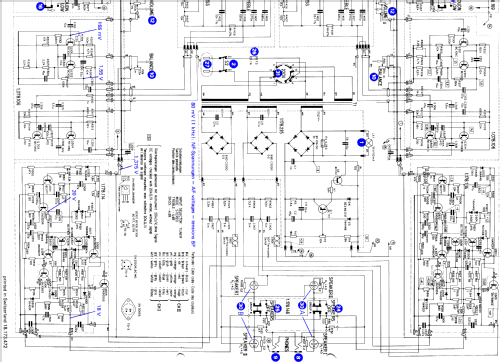

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: A 78 - Studer-Revox; Schweiz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 415 x 160 x 245 mm / 16.3 x 6.3 x 9.6 inch

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
