• Country
• Switzerland

• Manufacturer / Brand
• Studer-Revox; Schweiz

• Year
• 1955/1956

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 75064

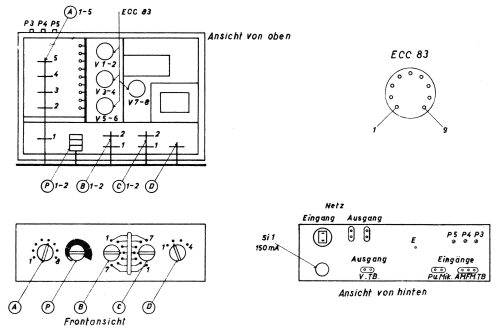

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 ECC83 ECC83 ECC83

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

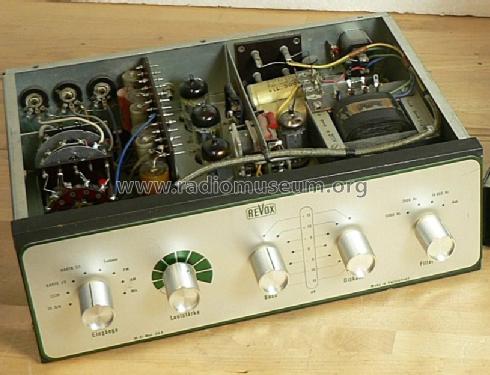

• Model: Revox 59-A [Serie B] - Studer-Revox; Schweiz

• Shape
• Book-shelf unit.

• Notes

• HiFi-mono-Vorverstärker, Serie B: mit zusätzlichem Filterschalter, zugehörige Endstufe: Revox 59-E.

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Price in first year of sale
• 395.00 SFr

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
