Revox A720
Studer-Revox; Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Studer-Revox; Schweiz
- Year
- 1973–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29387
Digitalanzeige mit Zahlenröhren
Original prospekt, in 1976.
Original prospekt in 1973.
Privatbild aus Studio

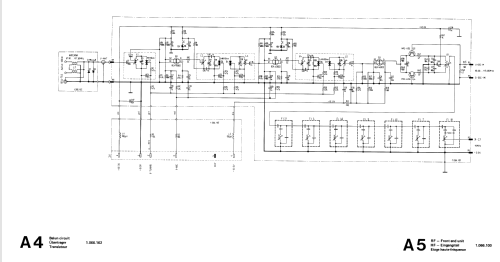

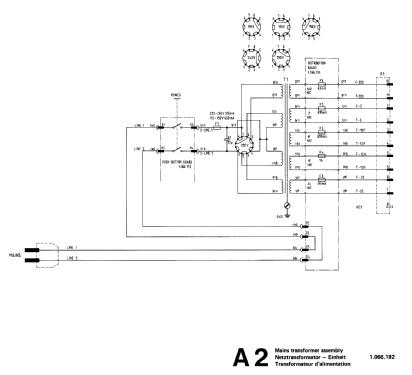

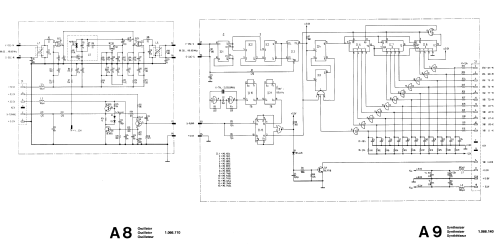

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Valves / Tubes
- Number of Transistors
- 47
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- FM Broadcast Band Only
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Revox A720 - Studer-Revox; Schweiz
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 483 x 151 x 328 mm / 19 x 5.9 x 12.9 inch
- Notes
-
ICs: 37.
Digitaler FM-Tuner & Preamplifier, Synthesizer-Prinzip, Frequenzanzeige durch Ziffernanzeigeröhren, 5 Stationstasten. Kabelfernbedienung, Preis inkl. FB.Ein anderer früher PLL Tuner ist der Scott T 33 S.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 3,100.00 SFr
- External source of data
- Erb
- Source of data
- Katalog RFP 1974 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (5/1975, S. 109, 110 / Beschreibung, Blockschema)
