• Country
• Germany

• Manufacturer / Brand
• Studiotechnik Berlin, VEB (Ostd.)

• Year
• 1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 282477

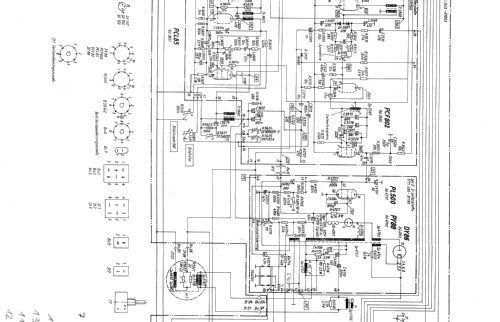

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC82 PCL85 PCF802 PL500 PY88 DY86 B59G2

• Number of Transistors
• 15

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Fernbildschreiber FB7 - Studiotechnik Berlin, VEB Ostd

• Notes

• Monitor für kommerziellen Einsatz.

• Mentioned in
• -- Schematic

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
