• Country
• Germany

• Manufacturer / Brand
• Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17124

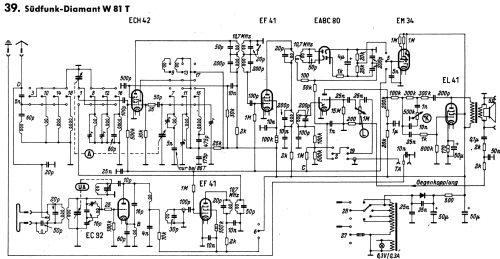

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EC92 EF41 ECH42 EF41 EM34 EABC80 EL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10800 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diamant W81T - Südfunk-Apparatebau, Dr. Ing.

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 460 x 250 x 320 mm / 18.1 x 9.8 x 12.6 inch

• Notes

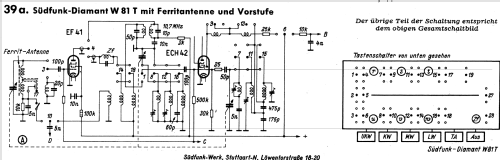

• Südfunk Diamant W81T gab es auch mit Ferritantenne und Vorstufe.

  Siehe auch Südfunk "Westfunk" W870TW mit ähnlichem Chassisaufbau.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 269.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb
