- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17175

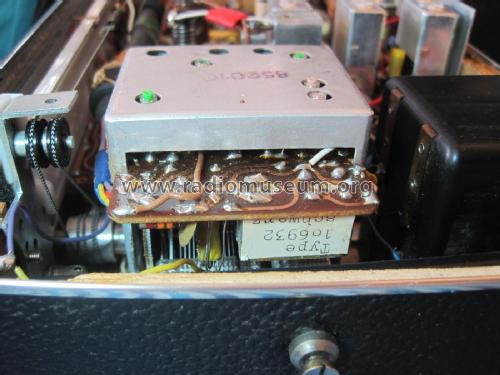

Seriennummer 385173 type106932
Seriennummer 385173 type 106962
- Number of Transistors
- 10
- Semiconductors
- AF106 AF135 AF137 AF136 AF138 AF138 2SB54 2SB54 AC117 AC117 1N60 1N60 1N60 OA172 OA172 BA124 1,4-St10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

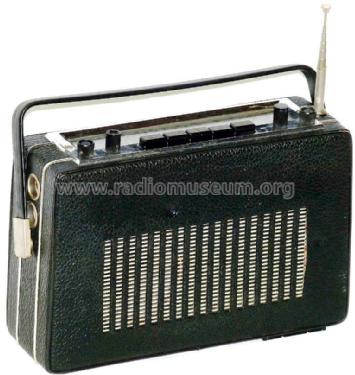

- Model: K106932 - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 180 x 88 mm / 10.8 x 7.1 x 3.5 inch
- Notes
- Anschlußmöglichkeit für Tonbandgerät, Plattenspieler, Autobetrieb und Kopfhörer. Skalenbeleuchtung bei Autobetrieb. [14. Taxliste Franzis-Verlag, 1966]
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
