Portable K 91984

Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201718

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Portable K 91984 - Südfunk-Apparatebau, Dr. Ing.
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 180 x 95 mm / 11 x 7.1 x 3.7 inch
  • Notes

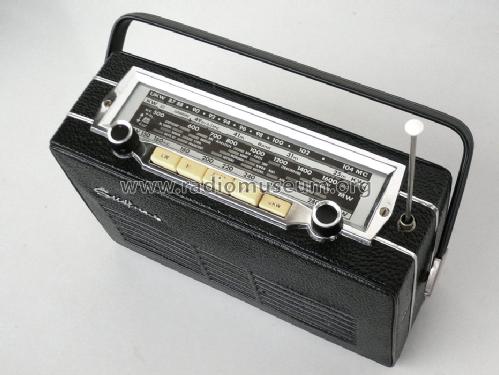

  • Holzgehäuse mit Kunstlederbezug in Lederimitat-Optik (Skai).
    UKW-AFC zuschaltbar; geeichte Radio Luxemburg-Markierung im 49 m-Band.
    Anschlüsse: Autoantenne, Autolautsprecher,
    TA/TB-Buchse für Netzteil/Stromversorgung von Autobatterie.
    Siehe auch Quelle Simonetta BT954 und Neckermann 822 Y 16.

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
