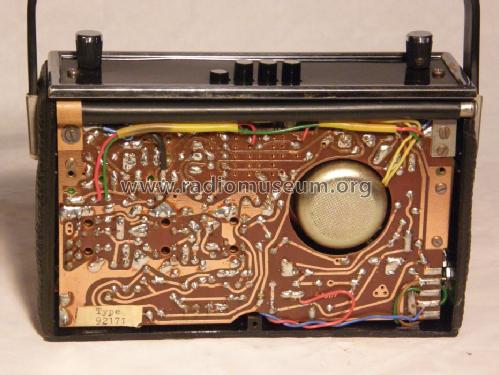

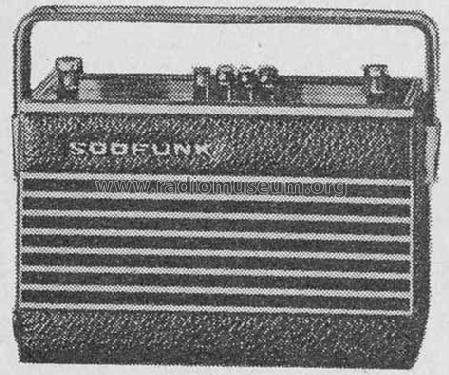

Portable 92171 Piccolo
Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1967–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17194
- Number of Transistors
- 9
- Semiconductors
- AF106 AF135 AF136 AF137 AF138 BC130 BC130 AC117 AC175 OA172 OA172 1N60 1N60 1N60 BZY87
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable 92171 Piccolo - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 175 x 110 x 60 mm / 6.9 x 4.3 x 2.4 inch
- Notes
-
Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 2,5 W; Netzbetrieb mit zusätzlichem Netzteil möglich.
Siehe auch das äusserlich ähnliche für Gauer Electronic Zürich hergestellte Modell Gauers VHF Informant II 94071, jedoch mit den Empfangsbereichen LW (200-400 kHz), MW, UKW/FM und VHF 100...136 MHz (AM, Flugfunk).
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 170.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Handbuch VDRG 1968/1969
