- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 342007
Sereinnummer 704031
Seriennr. 704031, Batteriefach fehlt
Seriennr. 704031
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 3R12: 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

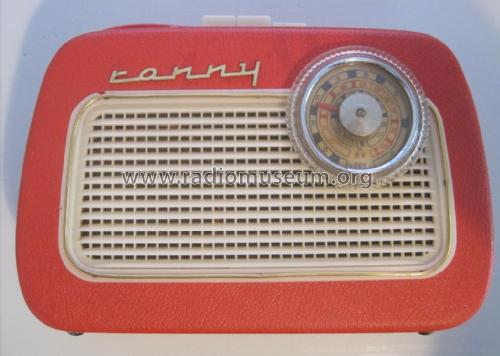

- Model: Ronny 91092 - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 175 x 100 mm / 10.2 x 6.9 x 3.9 inch
- Notes
-
UKW-Bereich bis 100 MHz, Plastiklautsprechergrill, Namensschild "ronny"
Bedienelemente v.l.n.r. Rändelpoti Lautstärke, Tastensatz LW, MW, UKW, Einstufige Tonblende mit Ausschalter per Rändelrad kombiniert.
Drehknopf ohne Untersetzung direkt mit Drehko-Achse verbunden.
Siehe auch Südfunk K91092 und Neckermann K91092
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
