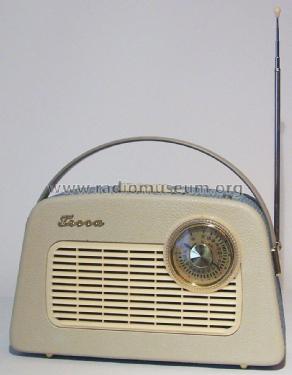

Terra K986 A
Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 358455
- Number of Transistors
- 9
- Semiconductors
- OC615 OC615 OC614 OC614 OC614 OC604 OC604 OC604spez OC604spez OA160 OA160 OA172 OA172
- Main principle
- Superheterodyne (common); ZF/IF 10700/465 kHz; 3 AF stage(s); Export model
- Tuned circuits
- 5 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Terra K986 A - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 180 x 95 mm / 10.8 x 7.1 x 3.7 inch
- Notes
-
Variante für Skandinavien, Gerät wurde in Schweden vertrieben, UKW bis 108 MHz.
Siehe auch das Exportmodell Südfunk Uropa K986 a für Nordamerika und Portable K986 für den deutschen Inlandsmarkt.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
