Solid State 16 (Japan 713)

Sun Mark - American Sun Mark Company; Danbury (CT)

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233942

 Technical Specifications

  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 117 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Solid State 16 - Sun Mark - American Sun Mark
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 12 x 9 x 4.5 inch / 305 x 229 x 114 mm
  • Notes

  • Sun Mark portable Radio Model FM/AM 6 Band 16 Transistor Japan 713.

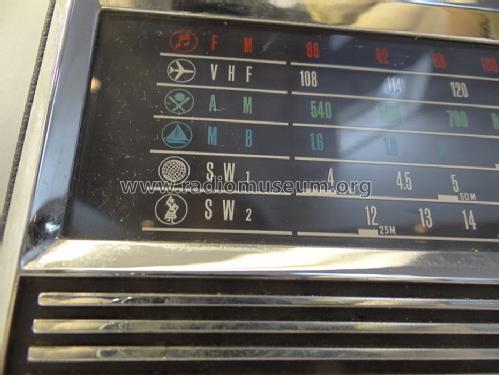

    6 Band - FM, VHF, AM, MB, SW1, SW2.
    Frequency Range: 88 - 108 MC, 108 - 135 MC, 540 - 1600 KC, 1,6 - 4,5 MC, 4 - 12 MC, 12 - 26 MC.
    FM AFC, Earphone 1 + 2, Phono, MPX.

    Made in Japan 713

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
