• Country
• United States of America (USA)

• Manufacturer / Brand
• Superior Instruments Co.; New York (NY)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 158074

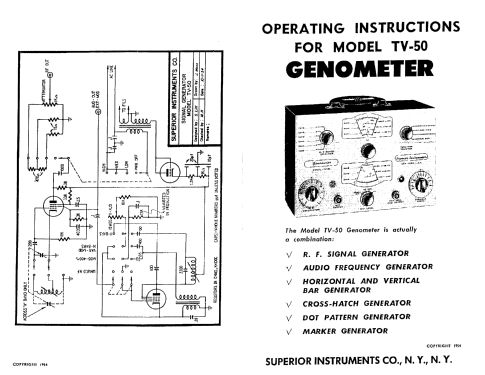

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6BE6 6BE6 7193

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105; 130 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

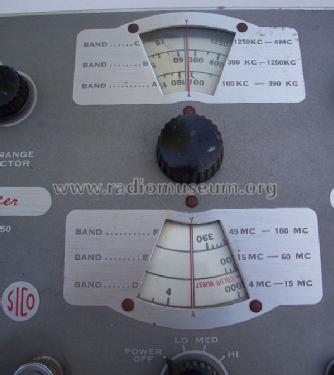

• Model: Genometer TV50 - Superior Instruments Co.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• The apparatus is actually a combination: R.F signal generator, audio frequency generator. Horizontal and vertical bar generator, cross-hatch generator, dot pattern generator and marker generator.

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
