Transistor Radio Tester 88
Superior Instruments Co.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Superior Instruments Co.; New York (NY)
- Year
- 1962
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 140227
eBay gra8scot, Item # 234475196558.
eBay gra8scot, Item # 234475196558.
eBay gra8scot, Item # 234475196558.
eBay gra8scot, Item # 234475196558.
Lafayette Catalog No. 620, 1962, pg. 205
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 3 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Transistor Radio Tester 88 - Superior Instruments Co.; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 70 x 150 mm / 9.8 x 2.8 x 5.9 inch
- Notes
-

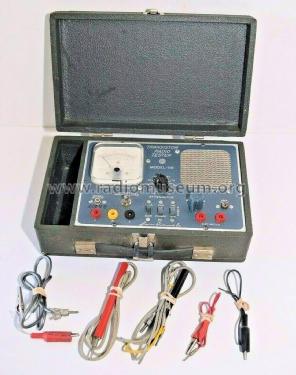

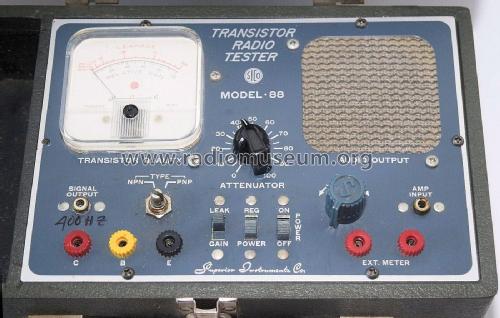

Transistor tester, signal source & signal tracing amp., banana plug terminals.
Identical to Accurate Transistor Radio Tester 158.
- Price in first year of sale
- 37.73 USD
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Lafayette Radio Catalog (No. 620, 1962, pg. 205, "New! Model 88")
- Author
- Model page created by a member from A. See "Data change" for further contributors.
