• Country
• Italy

• Manufacturer / Brand
• Superla - Cresa; Modena, Bologna

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108837

• • alternative name: Cresa Radio; Modena

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details

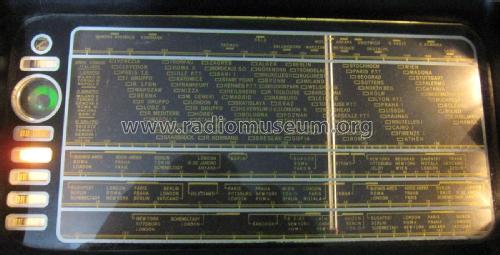

• Record Player (not changer); Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110-235 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1550 - Superla - Cresa; Modena,

• Shape

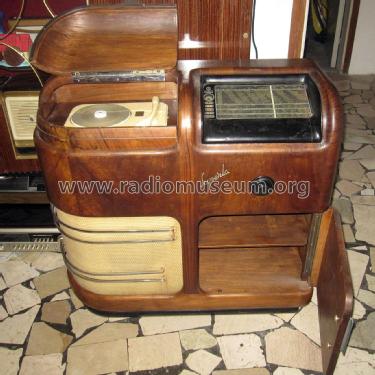

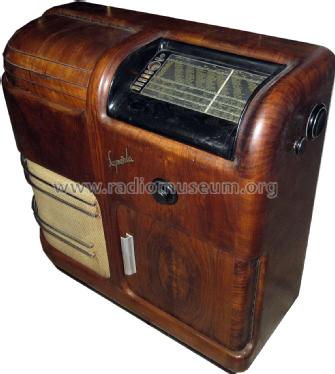

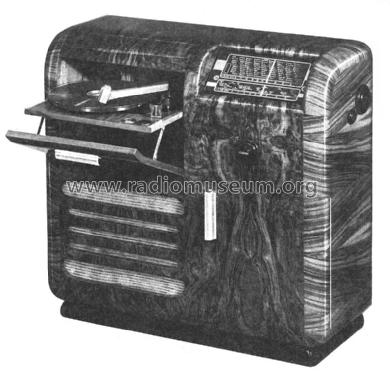

• Console: Chairside Radio.

• Notes

• Strumento indicatore di sintonia. Controllo di tono.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)

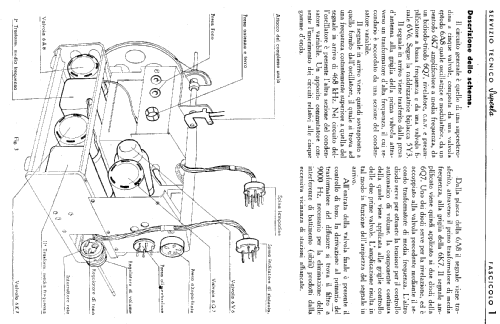

• -- Schematic

• Literature/Schematics (2)
• Il Radio Libro, (Ravalico) 6a edizione 1942

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 119 models, 67 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
