- Country
- Italy
- Manufacturer / Brand
- Superla - Cresa; Modena, Bologna
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153911
-
- alternative name: Cresa Radio; Modena
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

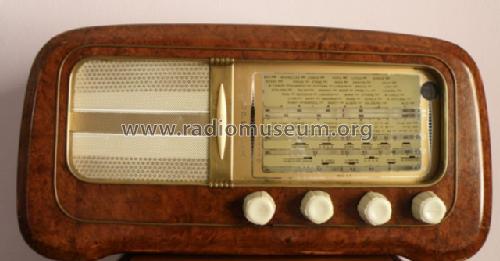

- Model: 8R - Superla - Cresa; Modena,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 260 x 200 mm / 22 x 10.2 x 7.9 inch
- Notes
-
Lo schema indica 6E5 come occhio magico; Guida Pratica AR II indica EM4.
OM 180 ... 580m, OC1 46 ... 51m, OC2 30 ... 32,5m, OC3 24,6 ... 26m.
- Source of data
- Guida Pratica Antique Radio II (2000)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
