• Country
• Germany

• Manufacturer / Brand
• Super-Radio; Hamburg

• Year
• 1952/1952

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 17227

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM4 AZ41 EC92 ECC81 EF42 EF41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

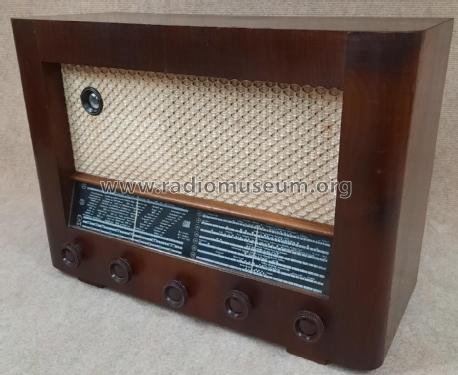

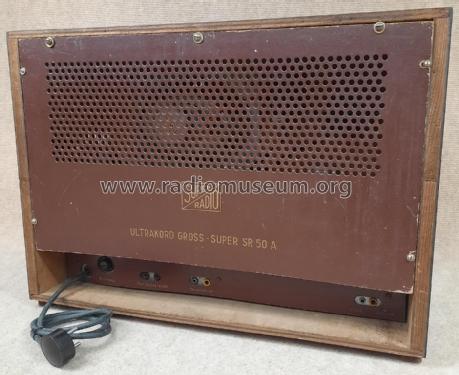

• Model: Ultrakord-Großsuper SR50A [Wechselstrom] - Super-Radio; Hamburg

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 360 x 220 mm / 20.5 x 14.2 x 8.7 inch

• Notes
• 7 gespreizte KW-Bereiche. UKW-Teil eingebaut. Auch als Allstromversion.

• Price in first year of sale
• 198.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkschau (5105)
