FM/MW/LW/SW Stereo Cassette Recorder CRS-2104

Superscope, Geneva IL

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 345253
    • alternative name: Superscope, Chatsworth

 Technical Specifications

  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 240 / 9 / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/MW/LW/SW Stereo Cassette Recorder CRS-2104 - Superscope, Geneva IL
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 395 x 232.5 x 120 mm / 15.6 x 9.2 x 4.7 inch
  • Notes

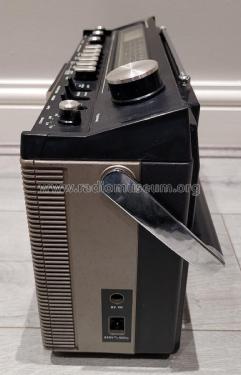

  • Portable FM/MW/LW/SW Stereo Cassette Recorder Model Superscope by Marantz CRS-2104

    Variable Sound Monitor (Tuning/Rec/Batt)
    AFC
    Sleep Function

    2x built in Condenser Mics
    AUX In
    Ext. Speaker 4 Ohms

    Front loading Standard Cassette Player/Recorder with total shutt off system
    One touch record function
    Super hard permalloy head
    Carrying Handle
    Telescopic Antenna
    3 digit mechanical Counter

    Made in Taiwan

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
