Conqueror PR103
Supersonic (Chassay Bros), Bulawayo, SR
- Country
- Zimbabwe
- Manufacturer / Brand
- Supersonic (Chassay Bros), Bulawayo, SR
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 272799
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 100-125; 200-250 / D: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Power out
- 2 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org
- Model: Conqueror PR103 - Supersonic Chassay Bros,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
SW 1: 1.7 ... 4 MHz
SW 2: 4.7 ... 9.9 MHz
SW 3: 11.5 ... 21.8 MHz

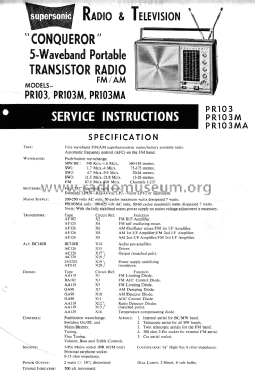

- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Steve Rich. See "Data change" for further contributors.
