• Country
• Zimbabwe

• Manufacturer / Brand
• Supersonic (Chassay Bros), Bulawayo, SR

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248593

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 & 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

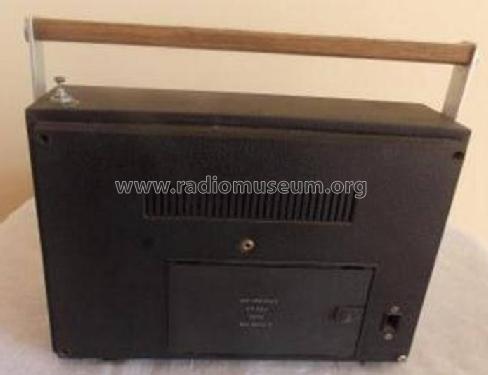

• Model: Conquest IV - Supersonic Chassay Bros,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 260 x 100 mm / 11 x 10.2 x 3.9 inch

• Notes

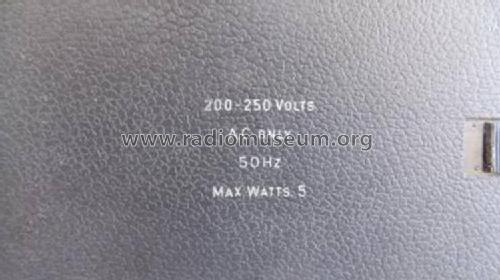

• Consumption 5W on AC mains.

  Battery voltage might be less than 12.

  Telescopic Aerial.

• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.
