Single Band Superheterodyne PR52 - TR53
Supersonic (Chassay Bros), Bulawayo, SR
- Country
- Zimbabwe
- Manufacturer / Brand
- Supersonic (Chassay Bros), Bulawayo, SR
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339106
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / D: 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Single Band Superheterodyne PR52 - TR53 - Supersonic Chassay Bros,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Single Band Superheterodyne All Transistor Receiver PR52 and TR53.
Wave range: 3,15 - 12,2 MHz
Alternative transistor set for output stage: OC78D plus a matched pair of 2x OC78.
- Mentioned in

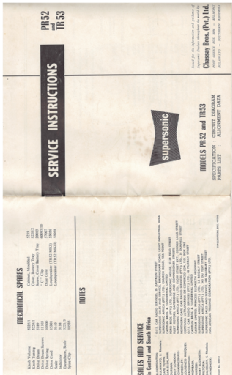

- - - Manufacturers Literature (Service Instructions)
- Author
- Model page created by Steve Rich. See "Data change" for further contributors.
