Unknown (351) Ch= AM3
Supertone Products Co., Inc.; Brooklyn, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Supertone Products Co., Inc.; Brooklyn, NY
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 319716
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown Ch= AM3 - Supertone Products Co., Inc.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 15 x 21 x 12 inch / 381 x 533 x 305 mm
- Notes
-

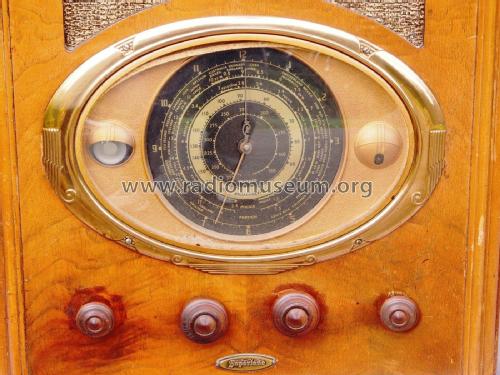

This unknown-model Supertone tombstone radio is a rebadged Admiral 351 with the Admiral AM3 chassis manufactured by Spiegel.
4 Tuning bands:
LW 150 375 kHz "Weather" MW 550 1700 kHz "Broadcast" SW 1 1.7 5.4 MHz "Police" SW 2 5.5 18 MHz "Foreign"
- Literature/Schematics (1)
- Rider's Perpetual, Volume 15 = 1947 and before (Admiral pgs. 15-1 to 15-3)
- Literature/Schematics (2)
- Rider's Perpetual, Volume 10 = 1939 and before (Spiegel pg. 10-37)
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
