Signal Generator 576

Supreme Instruments Corp.; Greenwood (MS)

Data
Forum
Pictures
Collections

  • Year
  • 1946 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 355982

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-125 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Signal Generator 576 - Supreme Instruments Corp.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 8 x 9 x 7 inch / 203 x 229 x 178 mm
  • Notes

  • The Supreme Instruments 576 Signal Generator has the following features:

    • Output frequency ranges (5):
      • A: 65 - 205 kHz
      • B: 205 - 650 kHz
      • C: 650 - 2050 kHz
      • D: 2.05 - 6.5 MHz
      • E: 6.5 - 20.5 MHz
    • Output attenuation settings (4):
      • 1, 10, 100, or 1000
    • Adjustable output level potentiometer
    • AM modulation: ON or OFF
    • Fixed internal 400 Hz audio modulation signal
  • Net weight (2.2 lb = 1 kg)
  • 12 lb (12 lb 0 oz) / 5.448 kg
  • Price in first year of sale
  • 68.95 USD
  • Literature/Schematics (1)

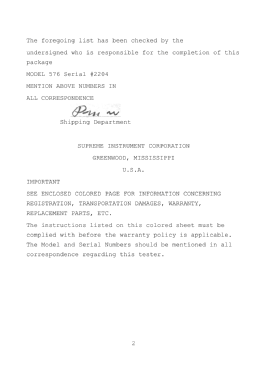

  • - - Manufacturers Literature (Model 576 Signal Generator Instruction Manual, Supreme Instruments Corp., schematic dated 1945.)
  • Author
  • Model page created by Meyer Rochwerger. See "Data change" for further contributors.
