• Country
• United States of America (USA)

• Manufacturer / Brand
• Supreme Instruments Corp.; Greenwood (MS)

• Year
• 1936 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 293266

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A7 6A7 76 84

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Material
• Wooden case

• from Radiomuseum.org

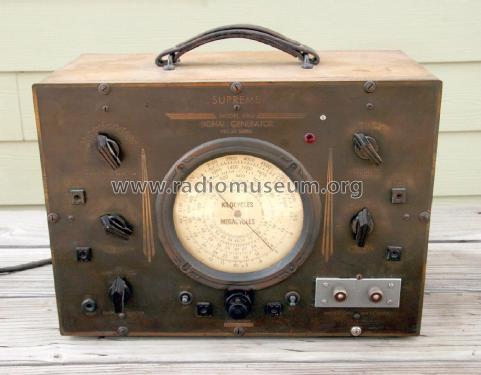

• Model: Signal Generator 580 - Supreme Instruments Corp.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• R.F Output: 150 kHz  - 60 MHz.
  A.F Output 500 Hz - 10 kHz.

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
