• Country
• United States of America (USA)

• Manufacturer / Brand
• Sweeny Radio Incorporated; Toledo OH

• Year
• 1933 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 230922

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6C6 6C6 42 42 42 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 14 W (max.)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Theatre Projector Audio Amplifier PS - Sweeny Radio Incorporated;

• Shape
• Rack

• Dimensions (WHD)
• 22 x 44.5 x 15 inch / 559 x 1130 x 381 mm

• Notes

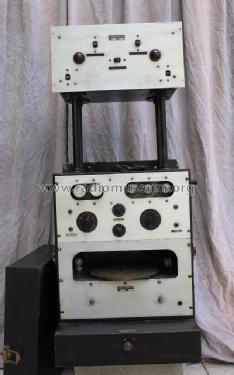

• This model is a theatre projector audio amplifier and also contains a record player with a 10" platter (labelled # SS). It has inputs for 1 microphone and 2 projectors. The projector inputs also supply the HV needed for the projectors. It has 1 monitor speaker output and (2) 12VAC outputs.

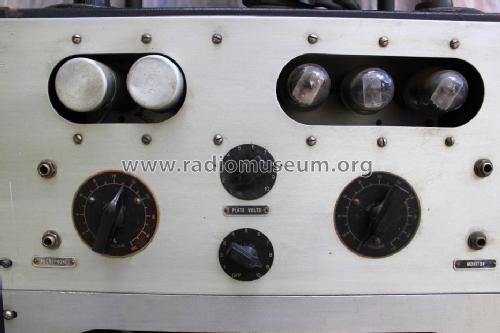

  The top section of the amp is the power supply (labelled # PS). The top right switch turns on the power to the amplifier. The top left switch turns on the power to the 12VAC transformer (labelled # PE 10). The switch in the center of the top section is used to switch between the (2) 12VAC outputs, which would power the PEC (photo-electric cell) cells of the projectors. It also has 2 knobs that control the high voltage outputs for the projectors. It has a volume control for the record player and a master volume control. It also has a drawer in the bottom of the cabinet (labelled # SC).

• Net weight (2.2 lb = 1 kg)
• 98 lb (98 lb 0 oz) / 44.492 kg

• Author
• Model page created by Bruce Cox. See "Data change" for further contributors.
