Swing Active Sound System ST-7
Swing Electroimpex GmbH, Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Swing Electroimpex GmbH, Frankfurt
- Year
- 1984
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 208476
Unterlagen von Eckhard Wegner
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Batteries / addl. power jack / 6 x 1,5/ 9 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

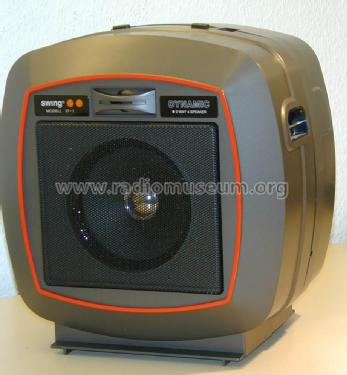

- Model: Swing Active Sound System ST-7 - Swing Electroimpex GmbH,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 255 x 266 x 92 mm / 10 x 10.5 x 3.6 inch
- Notes
- Swing ST-7 Active Sound System für maximalen Sound aus Stereo-Cassetten-Abspielern oder portablen CD-playern.
aufklappbar , 4 Lautsprecher = 2 Hochtöner a´ 20mm , 2 Tieftöner a´130 mm, Freq. 40 Hz - 15.000 Hz , Anschluß für 9V ext. Netzteil mit 3,5 mm Klinke , LED-Betriebsanzeige, kpl. mit Trageriemen.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
