• Country
• Germany

• Manufacturer / Brand
• Swing Electroimpex GmbH, Frankfurt

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210298

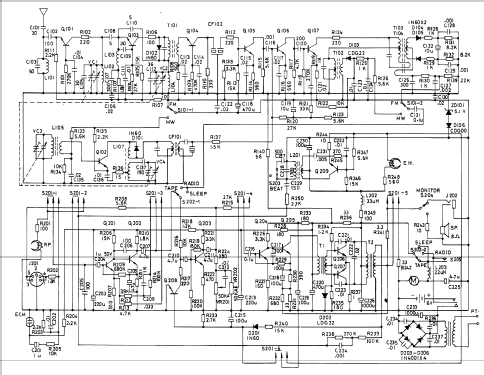

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player; Radio with other functions

• Power type and voltage
• Line / Batteries (any type) / 220/ 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Calypso W-103 - Swing Electroimpex GmbH,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 195 x 90 mm / 11.6 x 7.7 x 3.5 inch

• Notes
• Calypso W-103 Mono-MW/UKW Radiorekorder

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
