Doppel Deck Compo W-2500

Swing Electroimpex GmbH, Frankfurt

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 248300

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Radio with other functions
  • Power type and voltage
  • Line / Batteries (any type) / 220 / UM1: 8 x 1,5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Doppel Deck Compo W-2500 - Swing Electroimpex GmbH,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 650 x 220 x 160 mm / 25.6 x 8.7 x 6.3 inch
  • Notes

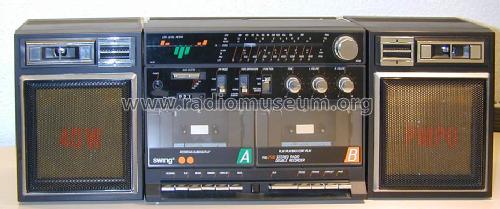

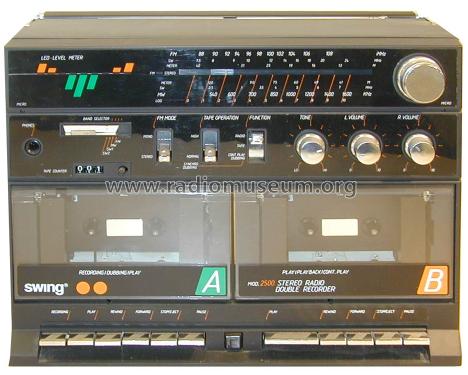

  • Swing W-2500 Double Cassette Recorder AM / SW1 / SW2 / FM, High Speed Dubbing, Slides Stereo, Regular, Tone, Volume left / right, Radio / Tape.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
