• Country
• Hong Kong

• Manufacturer / Brand
• Swing Interlectronic Ltd.; Hong Kong

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183719

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• S9016 S9016 S9016 TA7640 LA3161 TBA820 1S553T CDG23 CDG23 1N4148 1N4001 1N4001

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Magna MA-905C - Swing Interlectronic Ltd.;

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 290 x 320 x 210 mm / 11.4 x 12.6 x 8.3 inch

• Notes

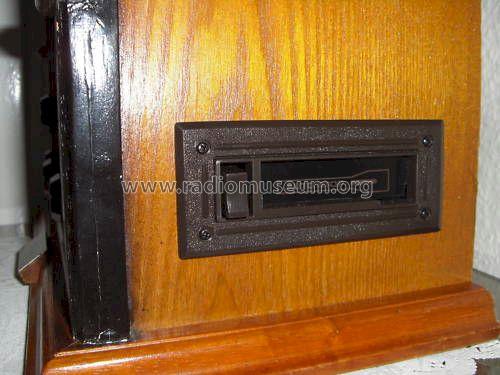

• OLD TIME 1932 Radio with built-in cassette player placed at right hand side, same model under Kinopolis front plate/brand as premium item.

  See also Collectors Edition Radio OTR-2002.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
