• Country
• United States of America (USA)

• Manufacturer / Brand
• Nobility (New York Merchandise Co.); New York, NY

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172079

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 cm = 2.1 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 8 Transistor 832N - Nobility New York Merchandise

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 110 x 30 mm / 2.6 x 4.3 x 1.2 inch

• Notes

• Made in Hong Kong

• Net weight (2.2 lb = 1 kg)
• 0.220 kg / 0 lb 7.8 oz (0.485 lb)

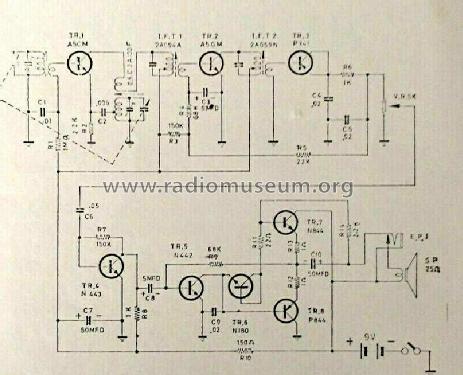

• Literature/Schematics (1)
• Collector's Guide To TrR1 Bunis trans.94 (1994 1st ed., pg. 136 with photo; 1996 2nd ed., pg. 180)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 29 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nobility (New York Merchandise Co.); New York, NY
