Radio-Cassette-Recorder 3737

Swing Interlectronic Ltd.; Hong Kong

Data
Forum
Pictures
Collections

  • Year
  • 1988
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 209810

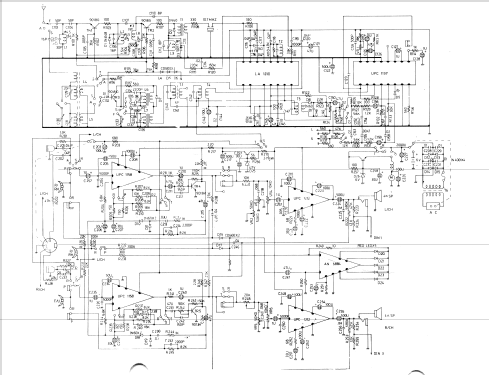

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Radio with other functions
  • Power type and voltage
  • Line / Batteries (any type) / 220/ 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio-Cassette-Recorder 3737 - Swing Interlectronic Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 380 x 240 x 90 mm / 15 x 9.4 x 3.5 inch
  • Notes
  • This model was shipped under different brand names but always using the same model number to importers in Europe.
  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
