• Country
• Germany

• Manufacturer / Brand
• Swing Electroimpex GmbH, Frankfurt

• Year
• 1978–1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208779

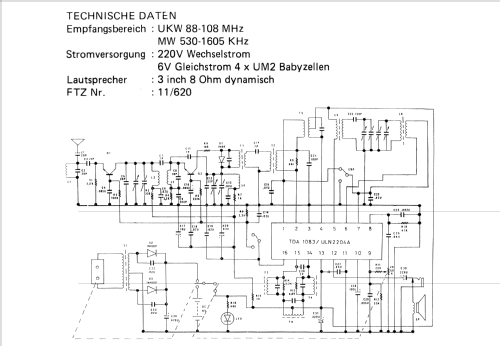

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Swing W-3400 - Swing Electroimpex GmbH,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 245 x 130 x 70 mm / 9.6 x 5.1 x 2.8 inch

• Notes

• Swing W-3400 Kofferradio für Batterie- und Netzbetrieb.

  Verschiedene Gehäusefarben. Bruttogewicht incl Komplettverpackung 750 Gramm.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
