Taiga W-206

Swing Electroimpex GmbH, Frankfurt

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208504

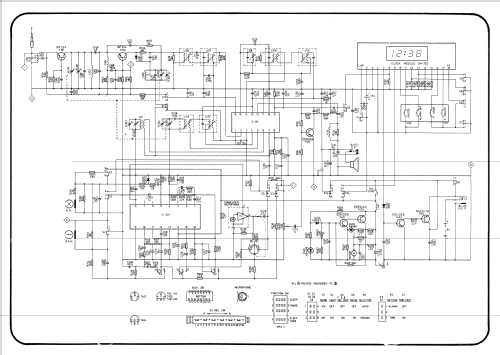

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Radio with other functions
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 & 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Taiga W-206 - Swing Electroimpex GmbH,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 230 x 120 x 60 mm / 9.1 x 4.7 x 2.4 inch
  • Notes
  • Taiga W-206 MW/UKW-Radiorekorder mit LCD-Uhr, zusätzlich noch 7 Dioden und 3 IC´s;
    für LCD Uhr 1 x 1,5 V zusätzlich erforderlich, Teleskopantenne.
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
