• Country
• Hong Kong

• Manufacturer / Brand
• Swops Electronics Co., Ltd.; Hong Kong

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315534

• Number of Transistors
• 5

• Semiconductors
• 2SC1390 2SC1390 2SC1390 2SB77 2SB77

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 006P: 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

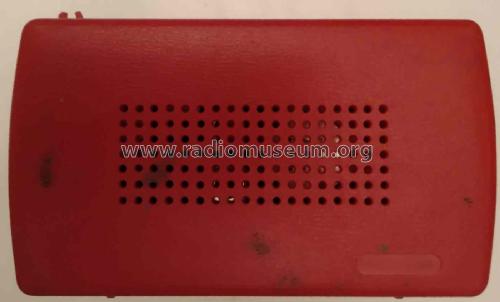

• Model: Solid State Sayonara - Swops Electronics Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 70 x 33 mm / 4.5 x 2.8 x 1.3 inch

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.

• Other Models

• Here you find 22 models, 18 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Swops Electronics Co., Ltd.; Hong Kong
