543 Ch= 1-602-2
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62457
Beitman
Sams photofact.

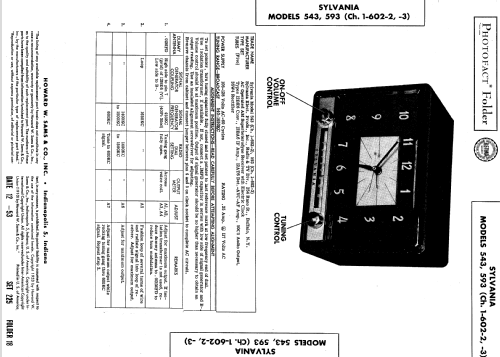

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 543 Ch= 1-602-2 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 260 x 200 x 160 mm / 10.2 x 7.9 x 6.3 inch
- Notes
- Sams photofact, set 225, folder 18, date 12-53, features the Sylvania models 543 and 593 as the same schematic.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 13, 1953
- Mentioned in
- Rider's Perpetual, Volume 23 (last) = covering up to 1954 (-)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-53, Set 225, Folder 18)
