2305TU Ch= 1-632-2
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 143011
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2305TU Ch= 1-632-2 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
- The Sylvania Model 2305TU is an AC Operated 6 Tube AM Receiver with Electric Clock.
- Literature/Schematics (1)

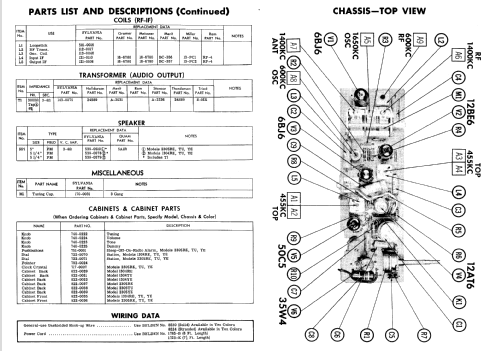

- Photofact Folder, Howard W. SAMS (Date 2-60, Set 474, Folder 17)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
