4305 Ch= 1-609-3
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1957 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 315370

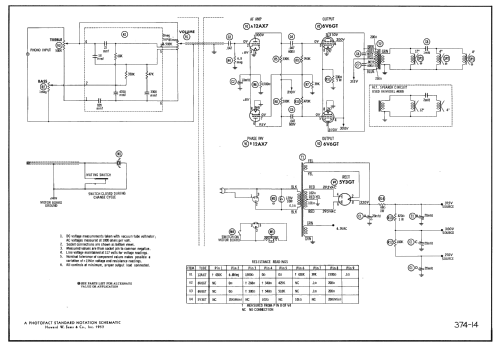

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4305 Ch= 1-609-3 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Sylvania model 4305 is an AC operated phono amplifier with 4 speed automatic record changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 374 Folder 14 dated 10-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
