515RE Ch= 1-607-1
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142944
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org

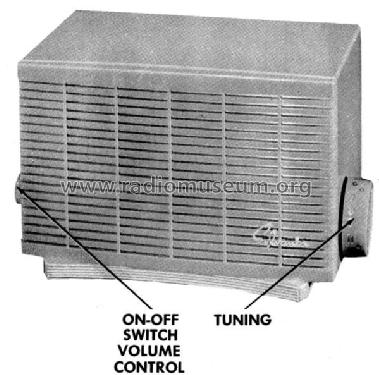

- Model: 515RE Ch= 1-607-1 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- The Sylvania Model 515RE is an AC/DC Operated AM Superheterodyne Receiver.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-56, Set 318, Folder 13)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
