5184 Ch= 1-601-5
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92067
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 5184 Ch= 1-601-5 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes

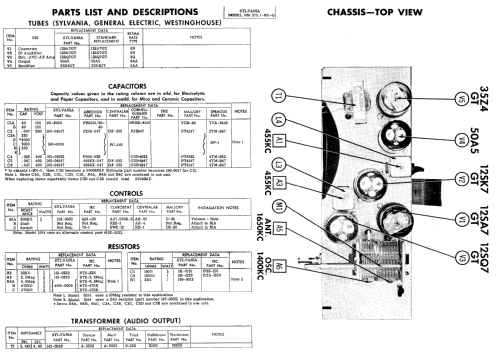

- Sams photofact, set 271, folder 15, date 3-55, features the Sylvania models 568 and 5184 as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 14, 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-55, Set 271, Folder 15)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
