5P11R Ch= 1-637-1
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139430
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5P11R Ch= 1-637-1 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes

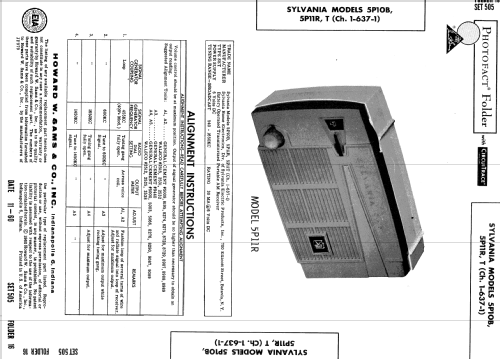

- Sams photofact set 505 folder 16 date 11-60 features the Sylvania models 5P10B, 5P11R and 5P11T as the same schematic.
- Literature/Schematics (1)

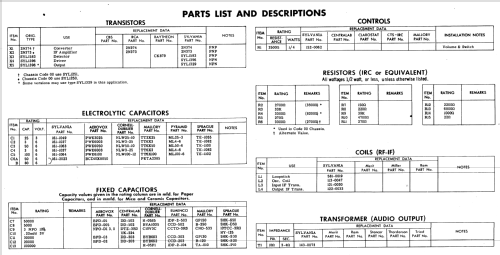

- Photofact Folder, Howard W. SAMS (Set 505 folder 16 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
