7120BF Ch= 1-366-66

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 137680

• Picture

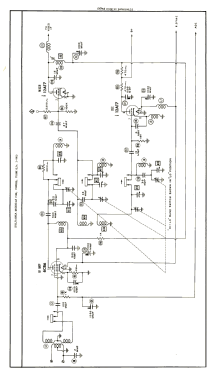

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• 6CB6 6J6 6BA6 or 6AU6 6BA6 6BA6 6AG5 or 6BC5 6AL5 6BF5 6AU6 6AU6 6T8 6V6GT 12AU7 12AX7 6BL7GT 6AL5 6AU6 12AU7 6BQ6GT 6W4GT 5642 5642 5U4G 5U4G 14CP4 or 16KP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 7120BF Ch= 1-366-66 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Sylvania model 7120BF is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 1-366-66, VHF tuner 323-0002 and picture tube 14CP4 or 16KP4.
  Typo page 12 parts list tubes ,V1 is 6CB6.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 2-51, Set 124, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
