• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332463

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 18FX6 18FW6 18FY6 32ET5 36AM3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

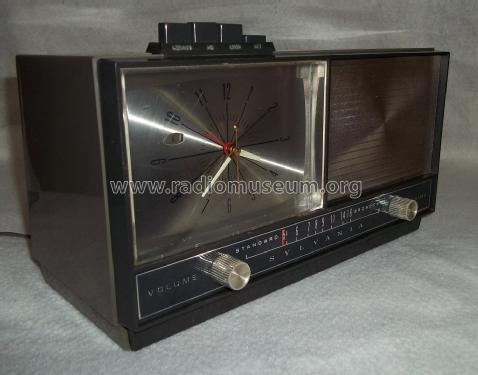

• Model: AK 37 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12 x 6 x 5 inch / 305 x 152 x 127 mm

• Net weight (2.2 lb = 1 kg)
• 4 lb 9 oz (4.563 lb) / 2.071 kg

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 698, Folder 9, June 1964)

• Author
• Model page created by Lester Troeckler. See "Data change" for further contributors.
