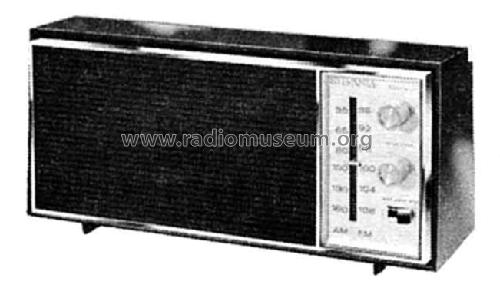

BT320 Ch= 375-1
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1971 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186075

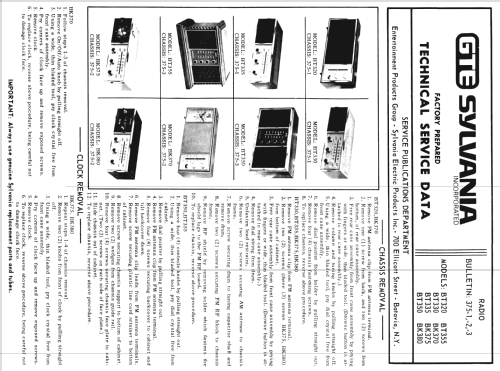

Original Technical Papers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: BT320 Ch= 375-1 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Mentioned in
- Photofact Folder, Howard W. SAMS
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
