• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1965 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 173570

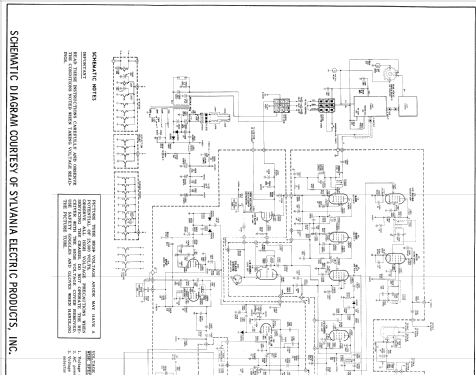

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Ch= D02-1 - Sylvania Hygrade, GTE, Nilco;

• Notes
• 25" Color-Television Receiver Chassis with UHF/VHF tuner, Picture tube: RE25CP22.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1965, Set 754, Folder 12-S)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
