• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1956–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212491

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 3V4 1U5 1U4 1R5

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 110 AC-DC / 2 x 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

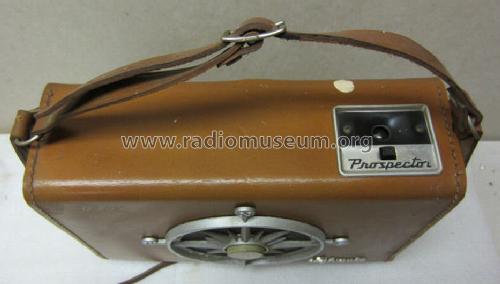

• Model: Emergency receiver with geiger counter U235 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 240 x 170 x 85 mm / 9.4 x 6.7 x 3.3 inch

• Notes
• Emergency receiver with geiger counter. Radio mit Geigerzähler.

• Price in first year of sale
• 65.00 $

• Author
• Model page created by Bertrand Hirl. See "Data change" for further contributors.
