SC791 Ch= 371-1, 805-5, 422-1
Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276944
- Number of Tubes
- 11
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 105-120 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SC791 Ch= 371-1, 805-5, 422-1 - Sylvania Hygrade, GTE, Nilco;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 66 x 28 x 18.5 inch / 1676 x 711 x 470 mm
- Notes
-

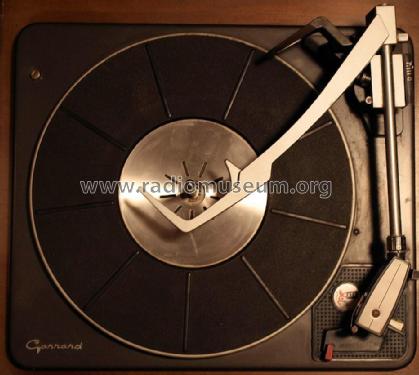

The Sylvania SC791 is an AC operated 11 tube, 10 transistor combination AM/FM/FM Stereo receiver and stereo phonograph with 4 speed record changer. Has 3 different chassis including the AM/FM chassis 371-1 (contains 11 tubes), the Pre-amp chassis 805-5 (contains 2 transistors) and the Power Amplifier chassis 422-1 (contains 8 transistors). The AM band frequency tuning range is 540 - 1650kHz, The FM band frequency tuning range is 87.5 - 108.5MHz. Has Qty(2) PM 12" speakers, Qty(2) PM 6" speakers and Qty(2) PM 3" x 7" speakers.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 793, Folder 10 dated 1-66)
- Author
- Model page created by Michael Waitz. See "Data change" for further contributors.
