• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 126032

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• 6CB6 6J6 6AU6 6BA6 6BA6 6CB6 6AL5 6BF5 6SN7GT 6AU6 6AU6 6T8 6V6GT 12AX7 6BL7GT 6AL5 6CB6 6SN7GT 6BQ6GT 6W4GT 5642 5642 5U4G 5U4G 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: The Hastings 155A Ch= 1-437-3 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Sylvania model 155A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 1-437-3, VHF tuner 3230010 and picture tube 17BP4A. Blonde laminate veneer.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)

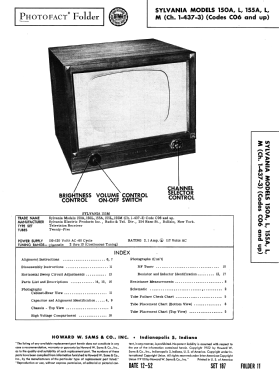

• Photofact Folder, Howard W. SAMS (Set 187, folder 11, dated 12-52)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
