• Country
• Spain

• Manufacturer / Brand
• Sylvania International; Silvergold; CEHASA; CGTESA; Madrid

• Year
• 1959 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 319200

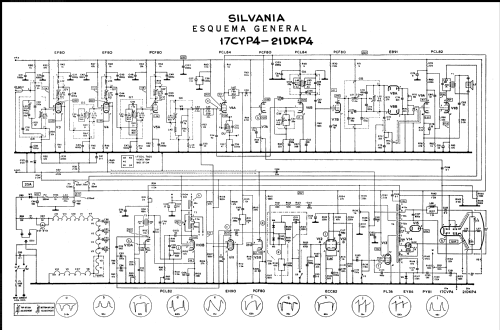

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC89 PCF80 EF80 EF80 PCF80 PCL84 PCF80 PCL82 EH90 ECC82 PL36 PY81 EY86 EB91 PCL82 17CYP4

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Sylouette II [17"] - Sylvania International;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Sylvania International (CEHASA-CGTESA),  Sylouette II (2) - 17"

  TV B/N 17" con selector rotativo de VHF



• Literature/Schematics (1)
• -- Original-techn. papers. (Esquemario TV REDE, Tomo II, 1964)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
