- Country
- Canada
- Manufacturer / Brand
- Sylvania Electric (Canada) Ltd. (Northern Electric Co. Ltd.), Dunnville, Ontario
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337898

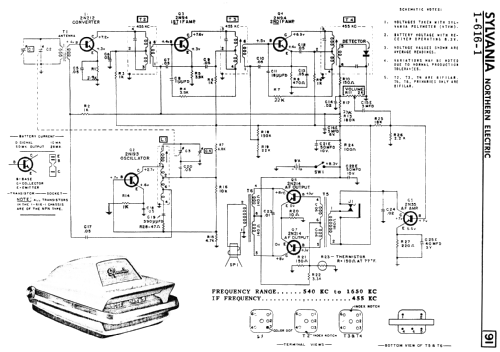

From RCC service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 3102 Ch= 1-616-1 - Sylvania Electric Canada Ltd.
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
The Sylvania model 3102 is a 7-transistor portable AM radio. Similar to USA model 3102.
- Literature/Schematics (1)

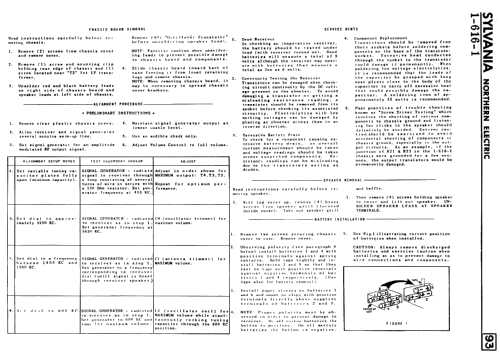

- Radio College of Canada (RCC) (1957-1958 Supplement 42)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
