• Country
• Belgium

• Manufacturer / Brand
• Symphonic; Belgium

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88689

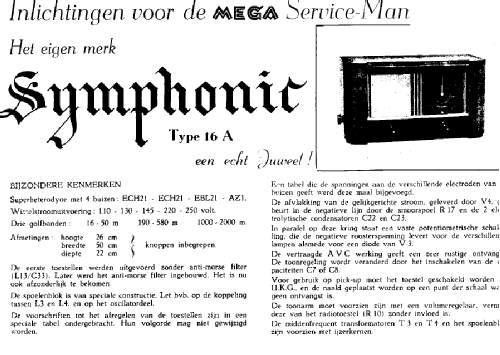

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 16A - Symphonic; Belgium

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 260 x 220 mm / 19.7 x 10.2 x 8.7 inch

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 22 models, 22 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
