• Country
• Estonia (Eesti, Tallinn)

• Manufacturer / Brand
• Punane, Radioelectronic Plant (RET), Raadio-Elektroonika Tehas (RET); Tallinn

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75657

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6А7 6К7 6Г7 6П6С 6Е5С 5Ц4С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/127/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

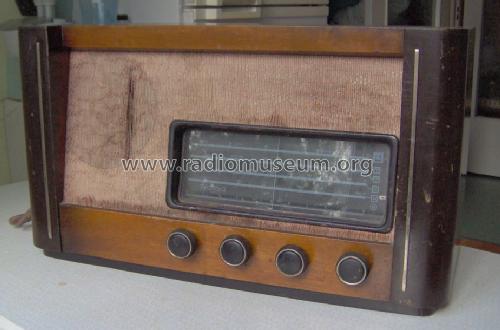

• Model: VV-663-2 - Punane, Radioelectronic Plant

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 260 x 340 mm / 24 x 10.2 x 13.4 inch

• Notes
• shortwave band 3,95-12,2 MHz (24,8-76 m)

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• External source of data
• E.A.Levitin "Spravocnik po radiovesciatelnim prijomnikam, Moscow 1960

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
